Wind Speed Bins

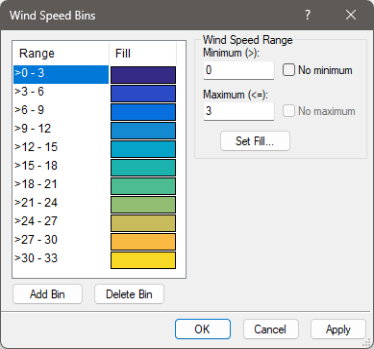

Use the wind chart Wind Speed Bins dialog to define wind speed ranges.


Define wind speed ranges in the Wind Speed dialog.

To Open the Wind Speed Bins Dialog:

  1. Select a wind chart.
  2. Click the Plot tab in the Property Manager.
  3. Click the Edit button next to Speed bins to open the Wind Speed Bins dialog.

Minimum

The value in the Minimum (>) box indicates the minimum value for the selected bin. This value is not included in the bin. To change the Minimum value, highlight the existing value and type a new number.

No Minimum

Check the No minimum box if this is the first bin in the plot. If the No minimum box is checked, all values less than or equal to the value in the Maximum box will be included in this bin. After the box is initially checked, it is disabled for all other bin definitions.

Maximum

The value in the Maximum (<=) box indicates the maximum value for the selected bin. This value is included in the bin. To change the Maximum value, highlight the existing value and type a new number.

No Maximum

Check the No maximum box if this is the last bin in the plot. If the No maximum box is checked, all values greater than the value in the Minimum box will be included in this bin. After the box is initially checked, it is disabled for all other bin definitions.

OK or Cancel

Click the OK button to make the custom wind speed bin changes and return to the plot window. Click Cancel to return to the plot window without making the change.

To Create Customized Speed Bins:

  1. In the Wind Speed Bins dialog, click the Add Bin button.
  2. In the New Bin Range dialog, enter the bin minimum and maximum and click the OK button.
  3. Click the Add Bin button and follow steps 1 and 2 above until all bins have been added.
  4. Click the OK or Apply button to draw the custom bins.

To Edit Customized Speed Bins:

  1. In the Wind Speed Bins dialog, click on the Range in the list on the left side of the dialog.
  2. Change the bin minimum or maximum in the Wind Speed Range section.
  3. Click the OK or Apply buttons to draw the new bin.

To Delete a Speed Bin:

  1. In the Wind Speed Bins dialog, click on the Range in the list on the left side of the dialog.
  2. Click the Delete Bin button.
  3. Click the OK or Apply buttons to draw the new bins.

See Also

Polar Wind Chart
